Slab Decking Arrangements

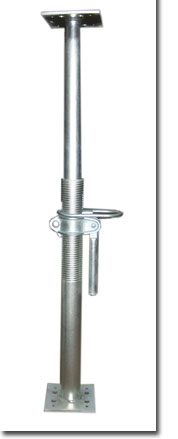

  • Adjustable Telescopic Prop
    Our props provide ideal and most economic method of support for all kind of formworks to slab, beams walls and column. They are invaluable to for a wide variety of other applications in general building construction and maintenance.
    Adjustable steel props are made from continuous welded steel tubes confirming to IS: II6I, grade YST 210.
    Outer : 60.3mm OD
    inner : 48.3mm OD

Height (mtr.)
Safe Axial Load (kg.)
Prop Closed Extended Closed Extended
OM 1.10 1.75 3500 3000
I P 1.50 2.75 3200 2300
2 P 2.00 3.25 3000 2200
3 P 2.00 3.75 2900 2000
4P 3.00 4.75 2300 1150



Cuplock Scaffolding System ;
  • Simplicity And Speed
    The success of the Cuplock system lies in the simplicity of the 'node' point or fastening method.Four horizantal can be fastened at once, making a very rigid connection. And they are fastened with just a hammer.
  • No Loose Parts
    A simple method of connecting horizantals and transoms to the standards in one single action without the use of nuts or bolts.
  • Versality
    Cuplock due to its versatility is ideal for many applications: Formwork support, General Access.Circular scaffolding, Mobile Towers, Loading Towers and many other typical uses.
  • Higher Strength
    Cuplock equipment is made from High quality steel, while being light and easy to use. Thus, assembled Cuplock system is able to sustain a load of upto 57 KN per leg(subject to bracing conditions).
  • Cost Saving
    Cuplock equipment can do tremendous cost saving in a long run as it can be errected by semi-skilled labour, easily stored, used for a variety of applications and is easily transportable.
Cuplock Components

  • Verticals / Standards
    Cuplock Standards are available to suit any support or access application economically. The connection point is set at 500/ 1000mm vertical intervals for maximum versatility in use.The lower cups, welded in position are made of high quality pressed steel.The upper mobile cups are made from Malleable Cast Iron to ensure rough site handling.The Standards are drilled at end for fixing of the spigot joint. Spigotted Standards are also available.
  • Available in following sizes:
    3000mm 2300mm 1800mm 1300mm
    2500mm 2000mm 1500mm 1000mm
  • Horizantals / Ledgers
    Cuplock Ledgers are made from High strength Steel tubes, which have identical forged blade ends located at each side to fit into cup joint of the Verticals / Standards.
  • Available in following sizes:
    2500mm 1500mm 900mm
    2100mm 1300mm 600mm
    2000mm 1250mm
    1800mm 1200mm
    1600mm 1000mm
  • Steel Battens / Challis
    The Battens are non-slip working surface made from MS HR Sheet, which could be used with Omega transoms to form light weight working platforms. Alternatively ,challis made of square steel tubes could be used with Cuplock system to form working platforms.
